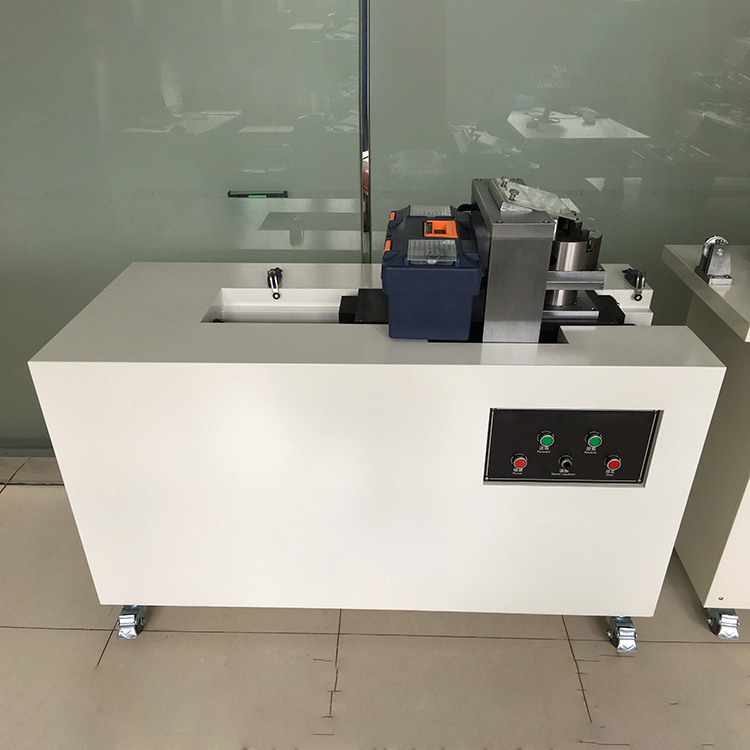

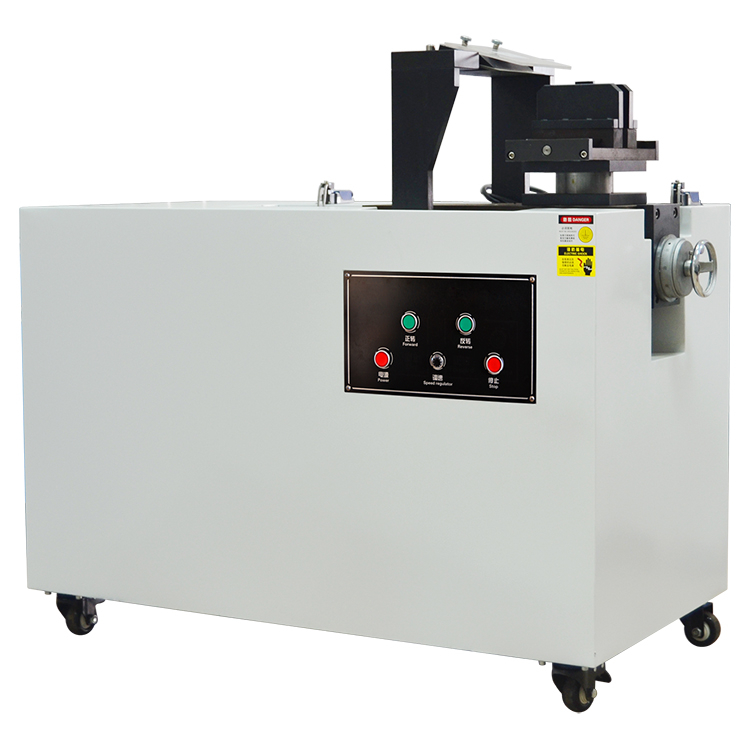

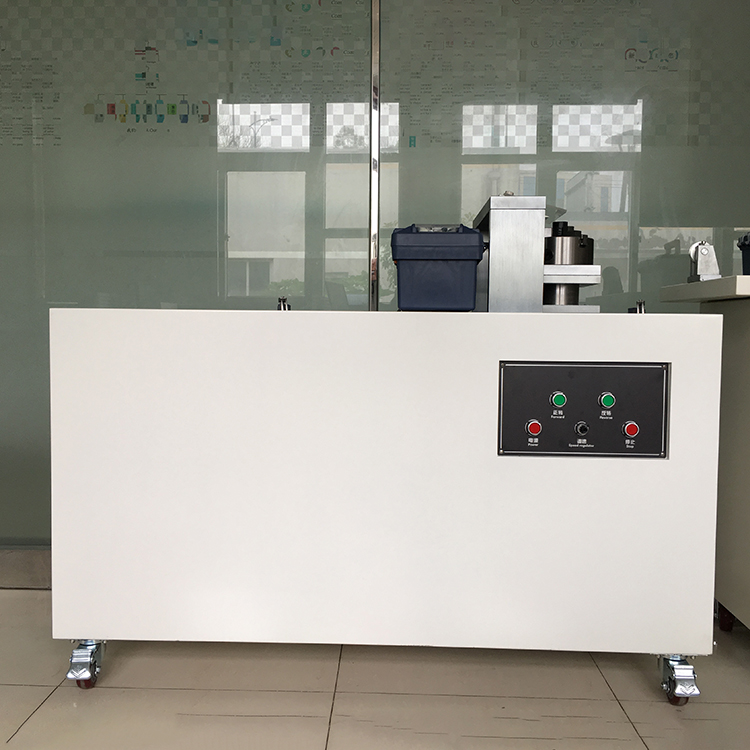

XLPE Cable Insulation Slicing Machine
Cross-linked polyethylene (XLPE) cables are essential components of the power, communications, and rail transit industries due to their excellent electrical performance and heat resistance. However, the key to ensuring their long-term, reliable operation lies in rigorous quality inspections during the production process. Cable slicing is the primary step in observing the internal structure and inspecting insulation impurities, micropores, crosslinking levels, and other key indicators. The quality of the cutting directly determines the accuracy and effectiveness of the test results.
The XLPE Cable Insulation Splitter is a key piece of equipment for preparing cross-linked polyethylene cable specimens up to 35kV for subsequent mechanical and physical property testing. Its core innovation lies in upgrading the traditional rotary cutter to a translational cutting system, enabling it to meet the sample preparation requirements for both thermal elongation and tensile tests.
This equipment significantly improves test reliability:
It strictly complies with product standards
It eliminates irregular surface marks on the specimen caused by the rotating blade
It significantly reduces test data variability

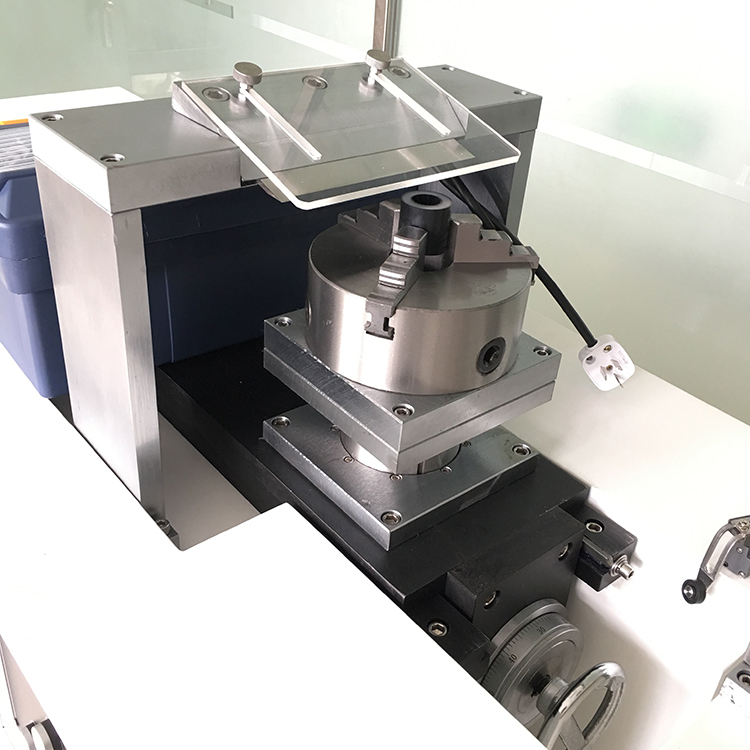

It is equipped with a machine-specific dovetail groove slide and a high-precision drive screw for smooth operation
It is safe and easy to operate.
As an ideal sample preparation device for mechanical and physical property testing of polyethylene materials, plastic-insulated power cables, and overhead insulated conductors, it is designed to balance precision and practicality.
Standard:
• GB/T 12706-2002
Technical Parameters:
• Max working width: 150mm
• Cutting range: 0.5-2mm
• Cross cutting sample width: 10mm－150mm
• Longitudinal cutting sample width:10mm－150mm
• Motor power: 0.55KW
Specifications:
• Overall dimensions: 1150mm×600mm×1080mm
• Power supply: AC 220V 50/60Hz 10A
