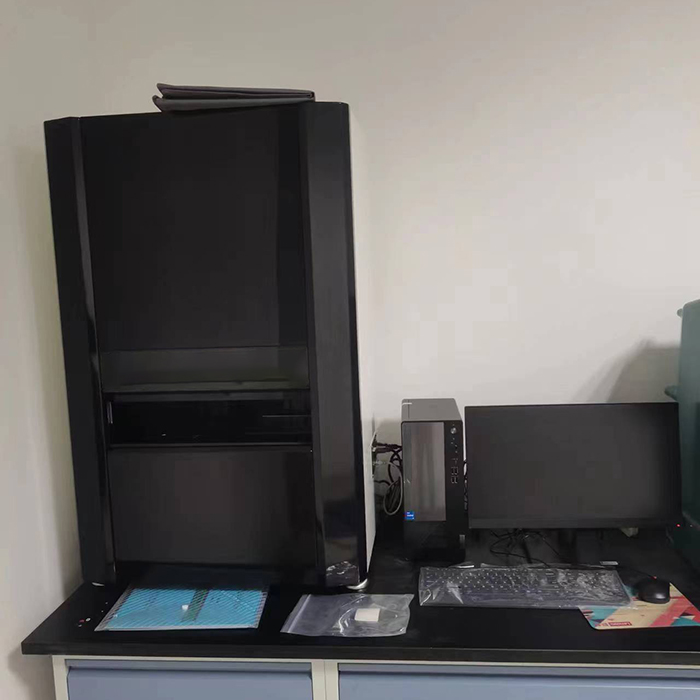

Wire And Cable Fully Intelligent Projector Insulation Sheath Thickness Tester

Wire And Cable Fully Intelligent Projector Insulation Sheath Thickness Tester

      The fully intelligent projector is developed based on the measurement requirements of cable cross-section dimensions of various structures in standards GB/T2951.11-2008 and IEC60811-1-1-2001. Relying on image acquisition and picture processing technology, the product achieves fast and accurate measurement. The instrument integrates 5-20 million pixel industrial cameras, telecentric lenses, supporting algorithm software and flat red light sources, and can measure the inner diameter, outer diameter, minimum/maximum/average thickness, eccentricity and other data of various types of cable insulation and sheath cross-sections.

     To ensure image acquisition accuracy and measurement repeatability, this instrument uses 3 sets of industrial lenses to help this product achieve a measurement indication accuracy of 0.01mm.

Technical parameters:

• Resolution: 1 µm;

• Measuring range: Camera 1 1~12mm, Camera 2 12~60mm, Camera 3 60~140mm;

• Measuring points: 1~12, can be set;

• Measuring point coverage angle: can be set;

Configuration and structure:

• Measuring lens: 5~20 million pixels, three;

• Lens position height can be fine-tuned;

• Data calibration: three standard circles + two multi-circle calibration plates correspond to the camera, and the camera precision calibration can be easily completed;

• Light source: high-brightness SMD LED light source; parallel to the full coverage of the sample table, can measure opaque samples;

• Optical path system: vertical dust-proof optical path system to reduce optical refraction;

• Sample platform: ultra-white tempered glass platform; ensure light transmittance and sample flatness;

• Data connection port: external USB port;

• Network interface: external network interface;

• Measurement program: automatically issue test reports, report information can be set, and reports can be used for storage and printing;

• Database program: can manage measurement data and convert it into EXCEL documents;

• There are a variety of standard cable cross-section styles to choose from;

• The main body is a box structure to reduce external light source interference;

Specifications:

• Dimensions: 650mm×480mm×1035mm;

• Power supply: AC220V, 50HZ.
