IEC60332-3-10 Bunched Cable Vertical Combustion Tester Flammability Testing Equipment

The bundled wire and cable combustion tester is an instrument used to detect the ability of vertically installed bundled cables or optical cables to suppress the vertical spread of flames under specified conditions. It is an essential device for bundled combustion tests of power cables, control cables, optical cables, etc. When a certain amount of gas is supplied to the box and ignited using a standard ignition source, this instrument can be used to test the state of vertical flame spread to vertical cables and wires. In addition, if the burner of this tester is adjusted by 20 degrees, the test standard of IEEE 383 (IEEE 1202) can be achieved. The equipment can be equipped with a heat release instrument configuration port, and with a gas analysis device, thermodynamic values ​​such as H.R.R (heat release rate), S.P.R (smoke generation rate), etc. can be measured.
Availability:
Quantity:

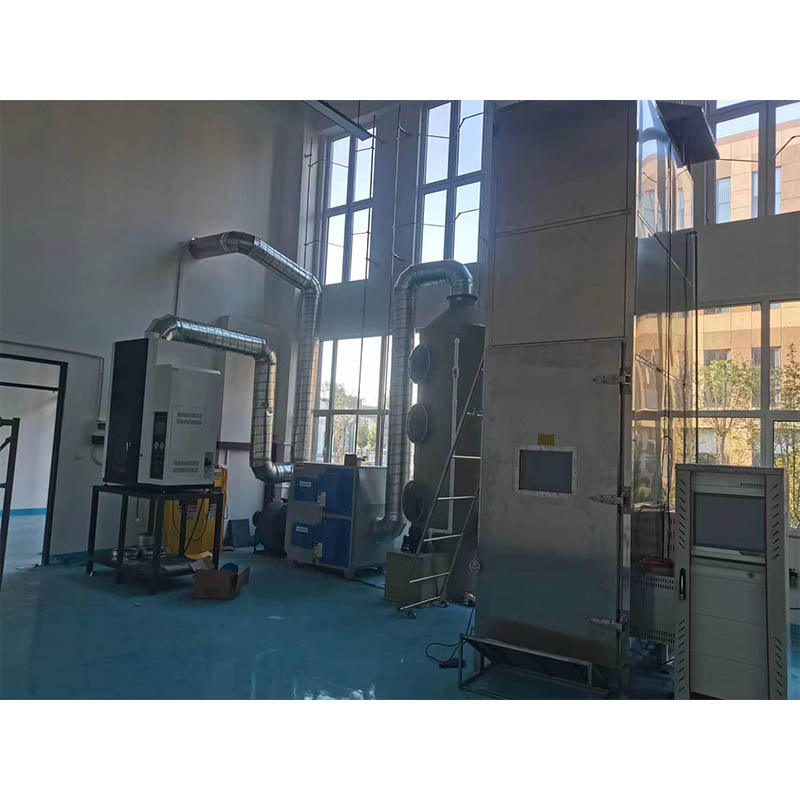

IEC60332-3-10 Bunched Cable Vertical Combustion Tester Flammability Testing Equipment

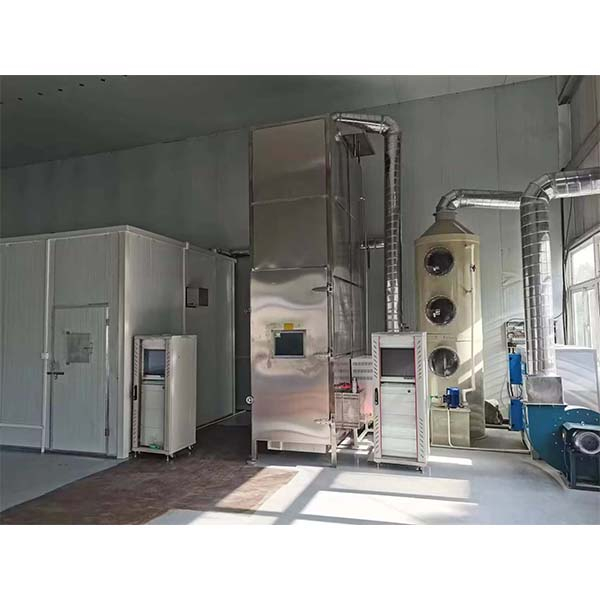

IEC60332-3-10 Bunched Cable Vertical Combustion Tester Flammability Testing Equipment

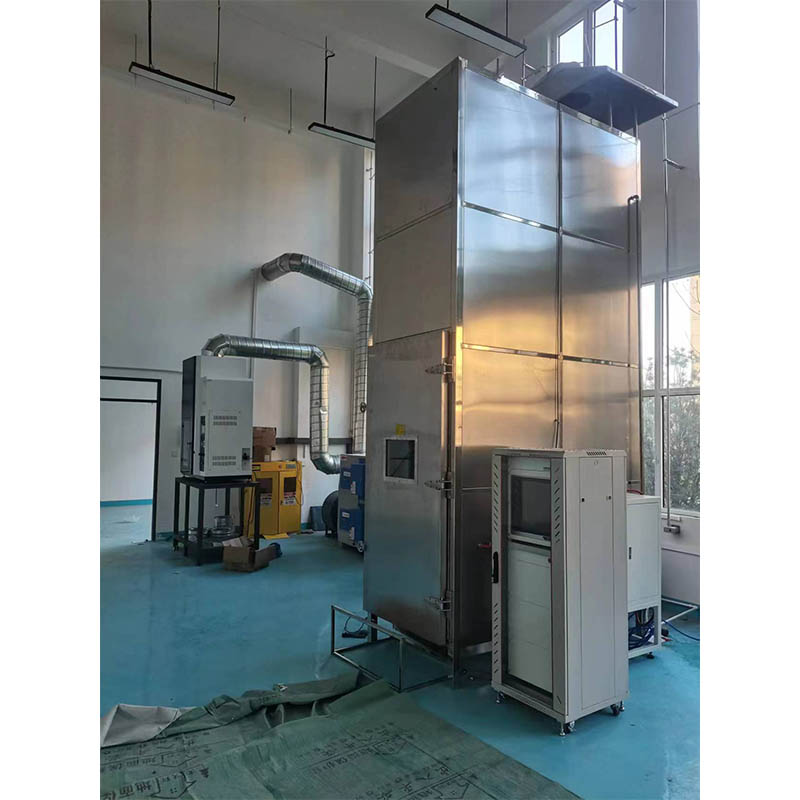

IEC60332-3-10 Bunched Cable Vertical Combustion Tester Flammability Testing Equipment

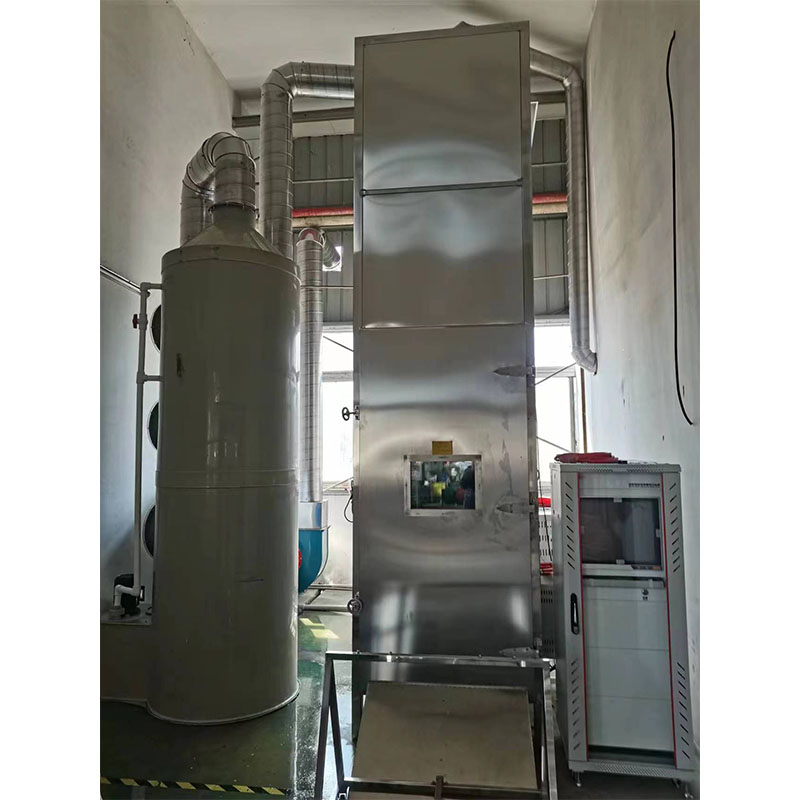

IEC60332-3-10 Bunched Cable Vertical Combustion Tester Flammability Testing Equipment
IEC60332-3-10 Bunched Cable Vertical Combustion Tester Flammability Testing Equipment
  • GD-IEC60332-3-10

  • GOLD

Product Introduction

The The bundled combustion test device is applicable to the IEC60332-3-10 Vertical flame propagation test for vertically installed bundled wires or cables" standard, which is used to evaluate the ability of vertically installed bundled wires, cables or optical cables to suppress the vertical spread of flames under specified conditions.

1

Standard

• IEC 60332-3-10

• EN 50399

Parameters
name
Cable and wire vertical flame tester
Power supply
AC220V, 50/60Hz, 1A
Manual certificates
Supplied
Air source
Methane gas (customer-owned)
Size
2150mm x 1200mm x 2150mm

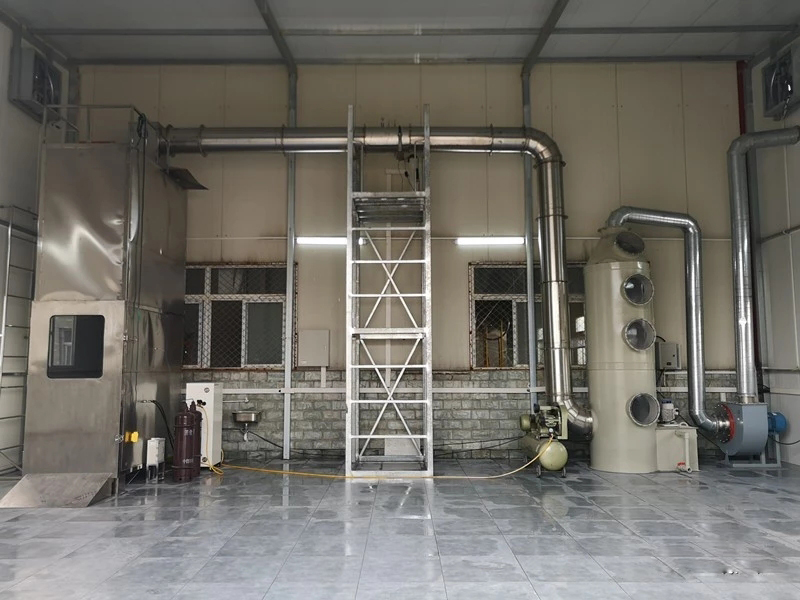

1

Technical Parameters
  • Internal Dimensions of Stainless Steel Test Chamber: 1,000(W) * 2,000(D) * 4,000(H)mm, supplemented with insulating mineral wool material.

  • At the lower section of the test chamber, there is an 800(W) * 400(D) sized hole at the 150mm position from the front side of the chamber to supply the air.

  • Cross-sectional Area of Intake Pipe: 240cm².

  • Air Inflow: 5000 ± 500L/min; equipped with wind speed sensor detection.

  • Top Exhaust Space: 300(W) * 1,000(D)mm.

  • Standard Stainless steel ladder dimensions: 500(W) * 3,500(H); Quantity: 1.

  • Wide Stainless Steel Ladder Dimensions: 800(W) * 3,500(H) mm; Quantity: 1.

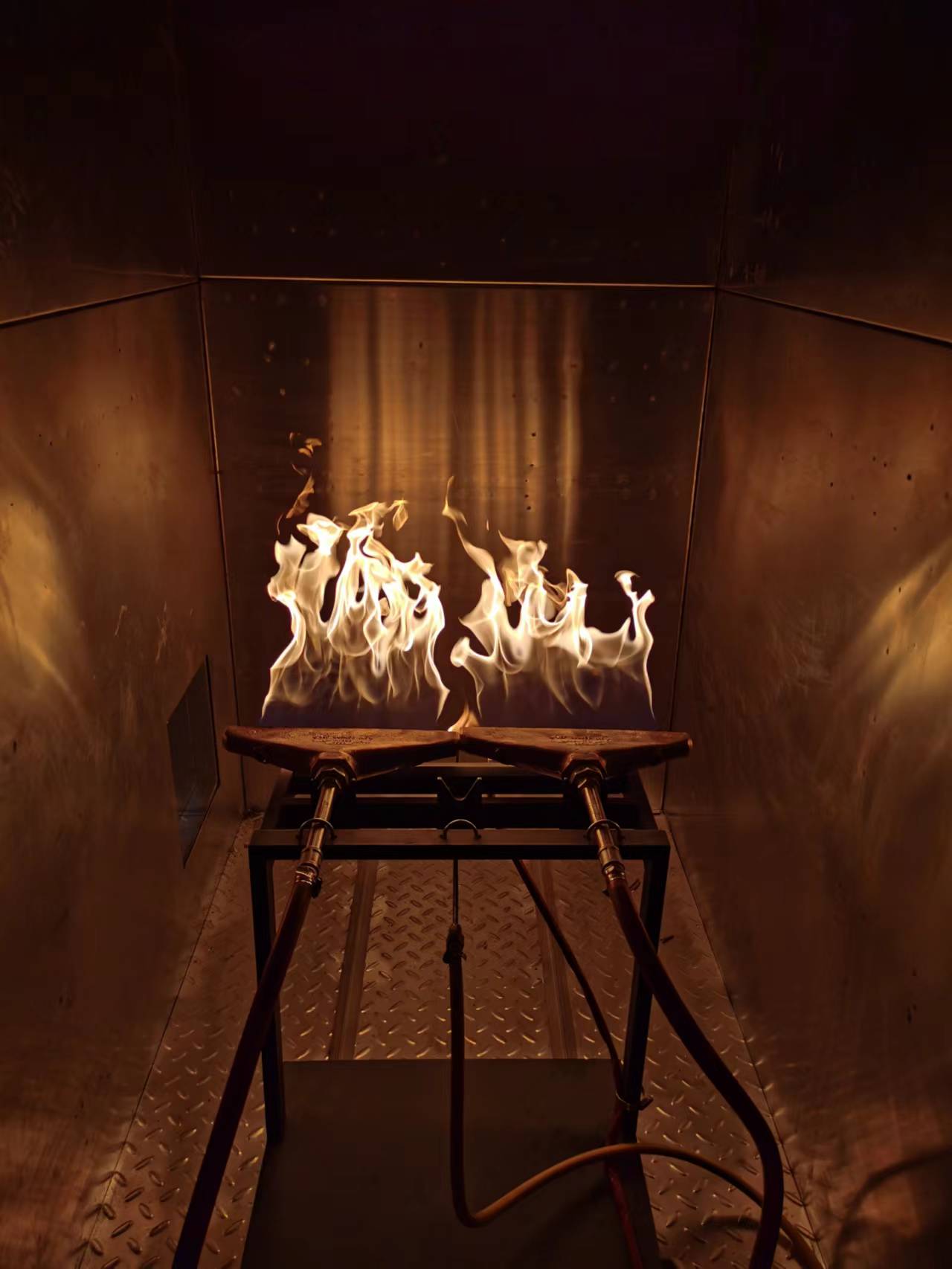

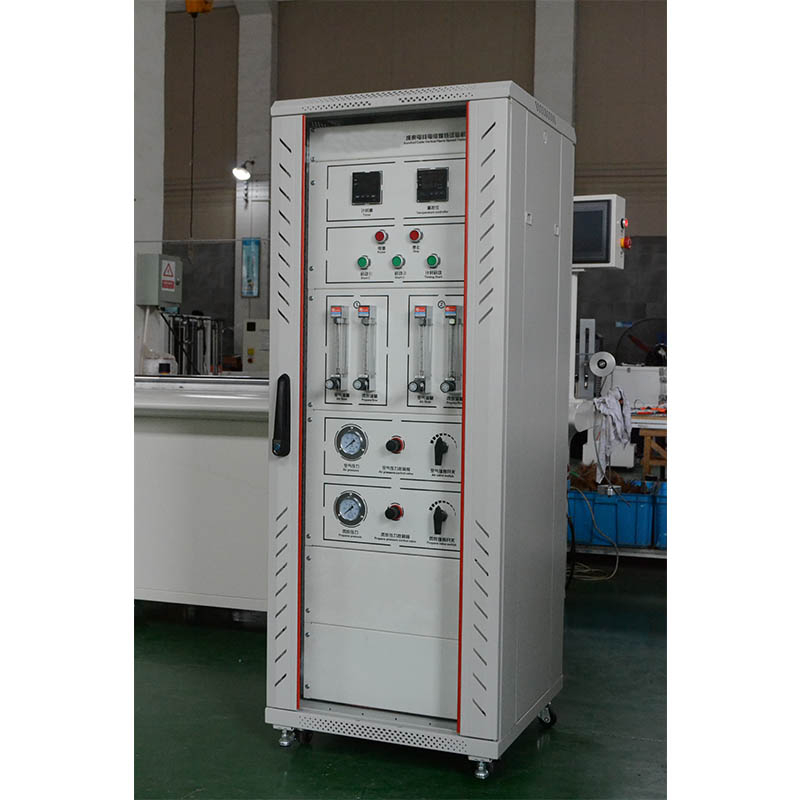

  • Two sets of banding standard propane burner devices.

  • Two sets of venturi gas mixing devices.

  • Pressure gauge and pressure-reducing valve device, which can adjust propane and air pressure to 0.1 MPa.

  • Control and Regulation of Air Source: Air Flow is Rotor Flowmeter: 10 ~ 100L/min (adjustable); Propane Flow is Rotor Flowmeter 2 ~ 20L/min (adjustable).

  • Equipped with a ball valve to manually shut off the air source.

  • Set flame test time automatically, and by then the air source can be cut off automatically.

  • The inner wall of the chamber is equipped with a thermocouple to display the internal temperature of the chamber.

  • The top of the chamber is equipped with a forced fire-extinguishing sprinkler device.

  • The upper part of the sample steel ladder is equipped with an automatic hoisting device.

    2


Use environment requirements:

● The site plane must be solid, flat and waterproof;
● The site floor height must not be less than 6 meters, and the space is recommended to be 6*7 meters;
● Ambient temperature: between 5℃ and 35℃;
● Air pressure: one atmosphere;
● There are no flammable and explosive objects or combustion-supporting objects in the site;
● The gas and water sources supplied by the instrument can be quickly cut off, and the location is clearly marked;
● The ambient wind speed is less than 8m/s;

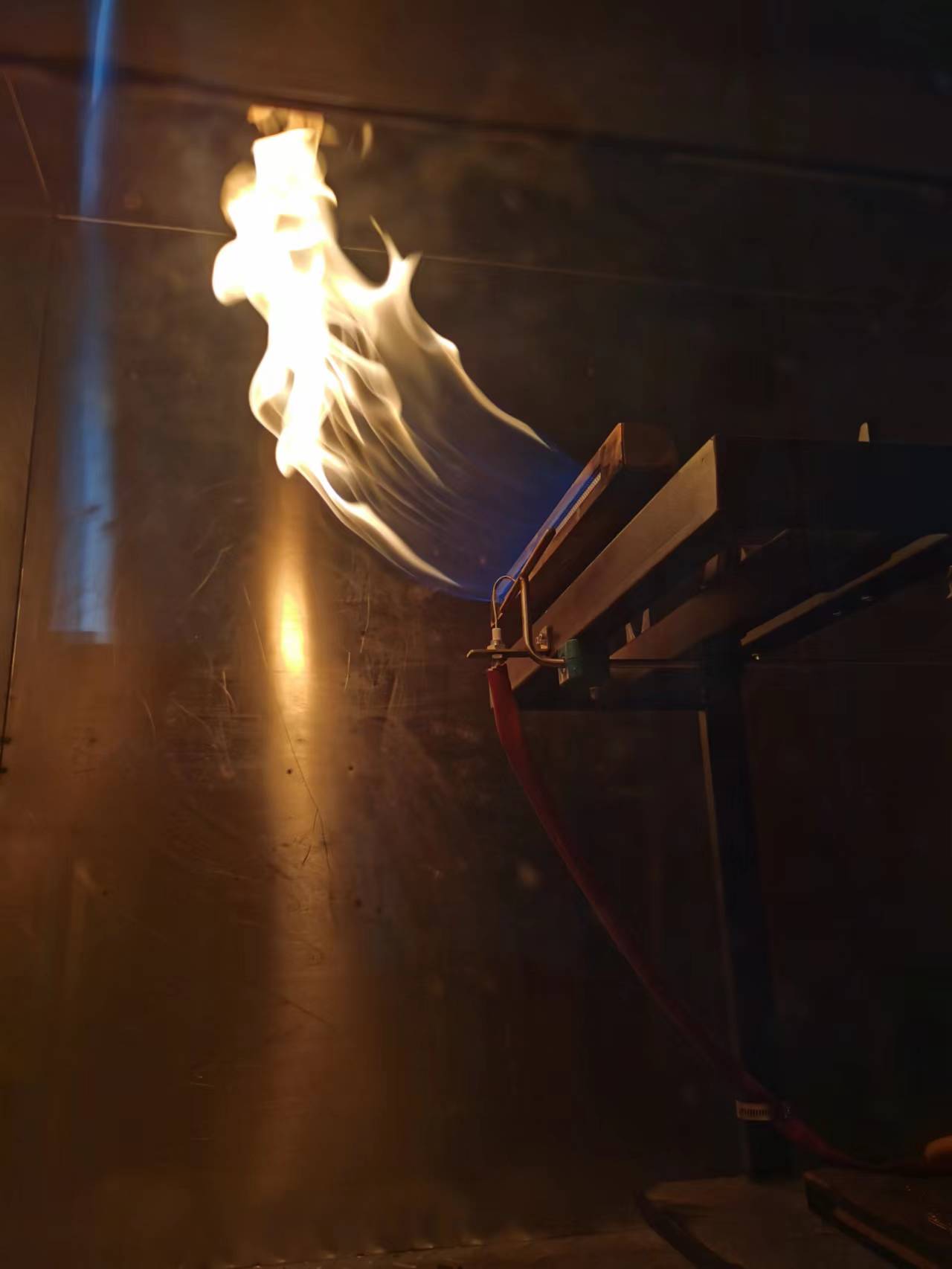

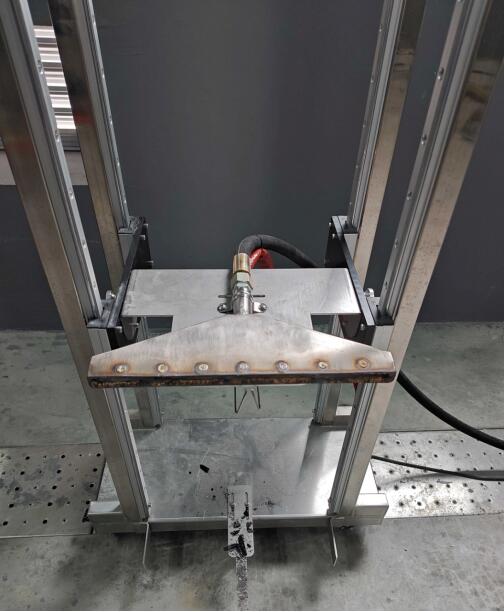

burner
