Hot Set Aging Test Chamber

Hot Set Aging Test Chamber is mainly used for natural ventilation thermal aging test in wire, cable, rubber and plastic industries.
Availability:
Quantity:
Hot Set Aging Test Chamber
Hot Set Aging Test Chamber
Hot Set Aging Test Chamber
Hot Set Aging Test Chamber
Hot Set Aging Test Chamber
Hot Set Aging Test Chamber
  • GD-42170

  • GOLD


e89dde2f9e1c356310c16decf5bcef5

Hot Set Aging Test Chamber

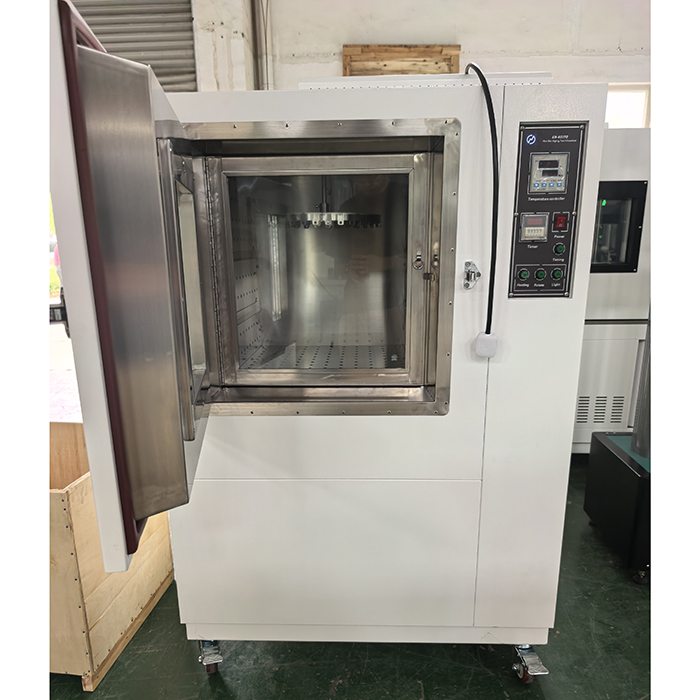

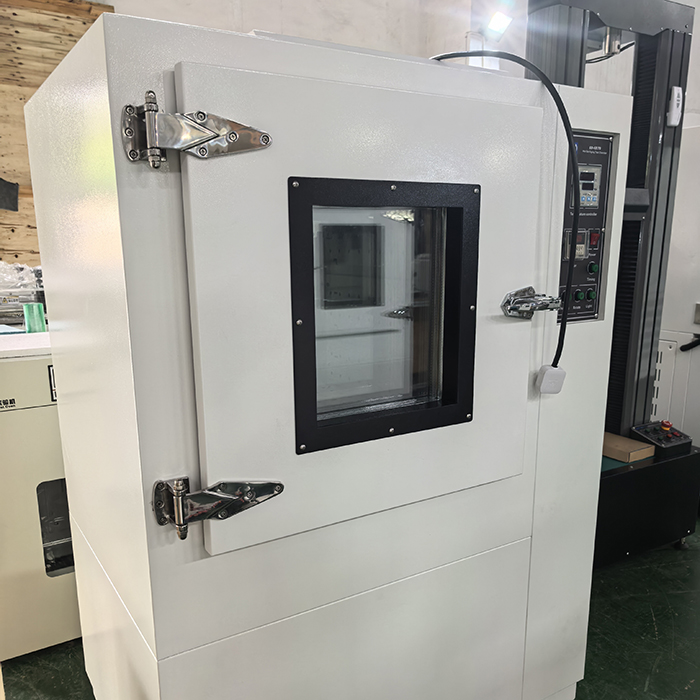

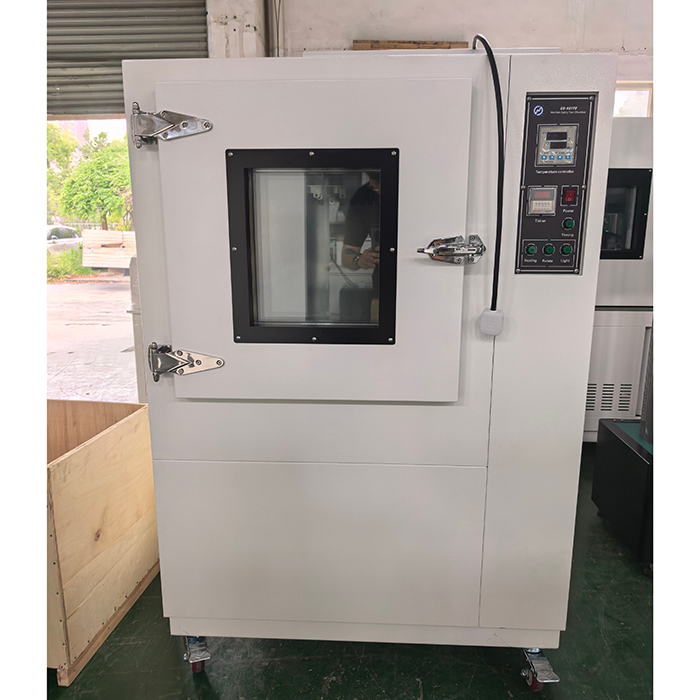

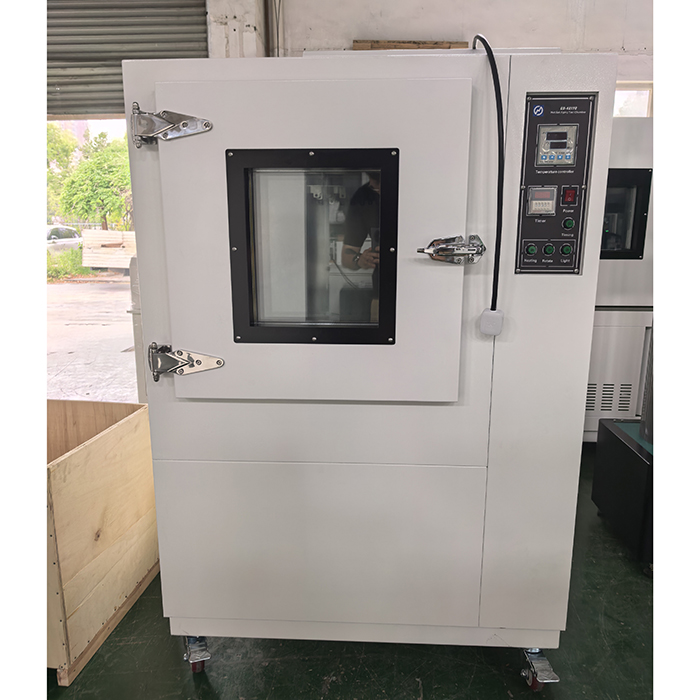

Hot set aging test chamber is mainly used for wires, cables, plastics, rubbers and other industries for the natural ventilation thermal aging test. The temperature control is adopted a digital instrumentation, easy to operate; it’s with an observation glass window, stainless steel working room; the shell is made of the high quality steel plate, whose surface is spray treated; the door seal is made of heat-resistance silicone rubber, healthy and safe.



Standard:

• GB/T 2951-2008


Technical Parameters:

• Temperature range: room temperature (about 25℃) ~ 300℃, with buzzer alarm

• Temperature fluctuation: ±0.5℃

• Temperature uniformity: ±2℃

• Heating time: it takes about 50mins from room temperature to 300℃, with observation window

• Ventilation volume: 8~20

• Internal room dimensions: 450×450×500mm (customized)

• Materials of oven interior: SUS#304 stainless steel, oven exterior materials: antistatic spray (white)

• Thermal insulation materials: five-sided 100mm filling cotton insulation, underfill 60mm cotton insulation


Specifications:

Overall dimensions
950×750×1400mm
Power supply
AC 220V 50/60HZ 3KW
