GD-IEC60695-2-10
GOLD
Product Introduction：

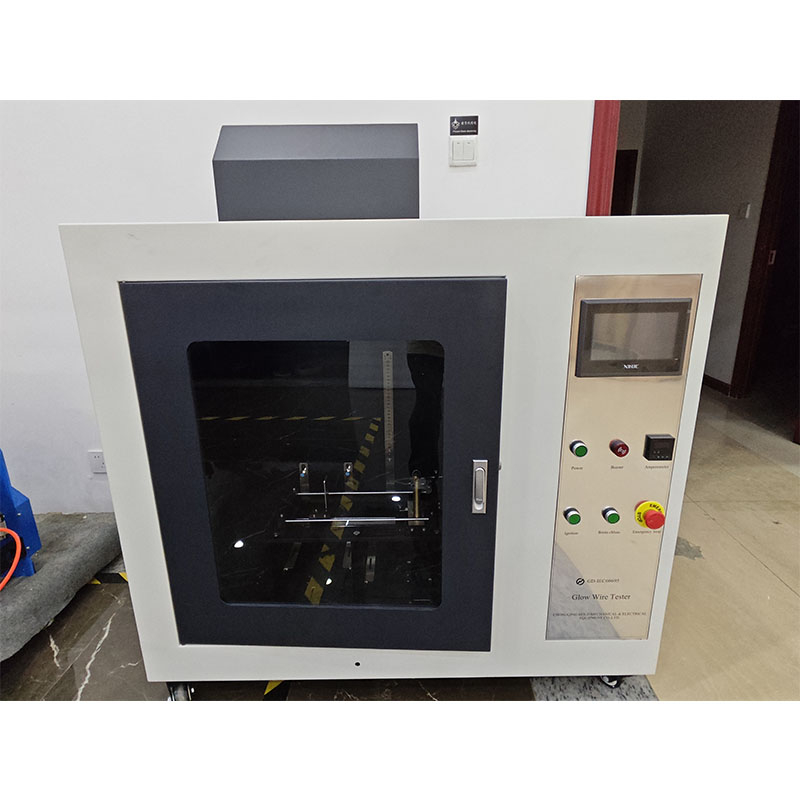

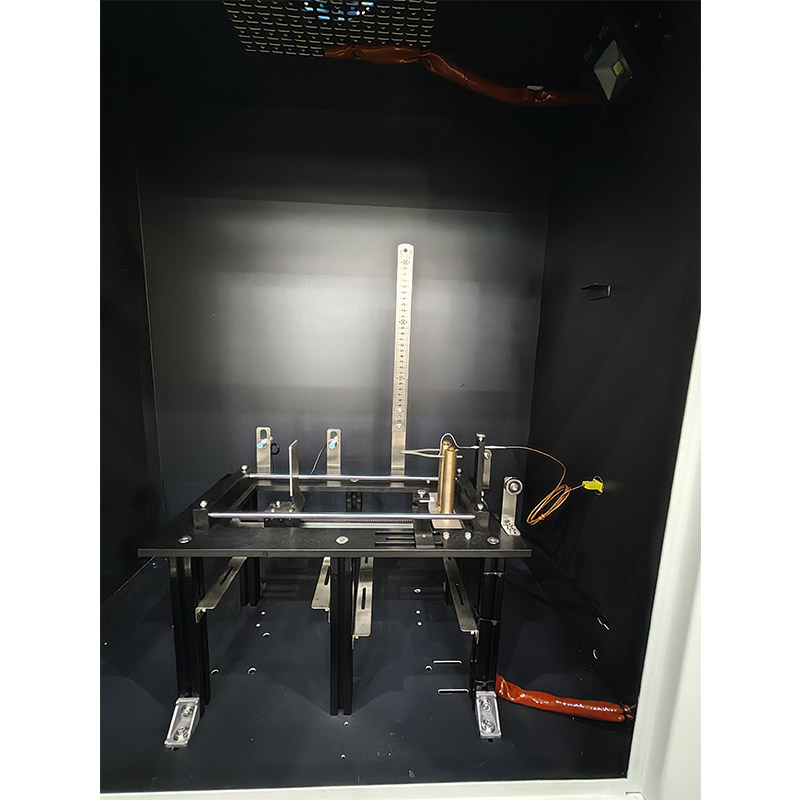

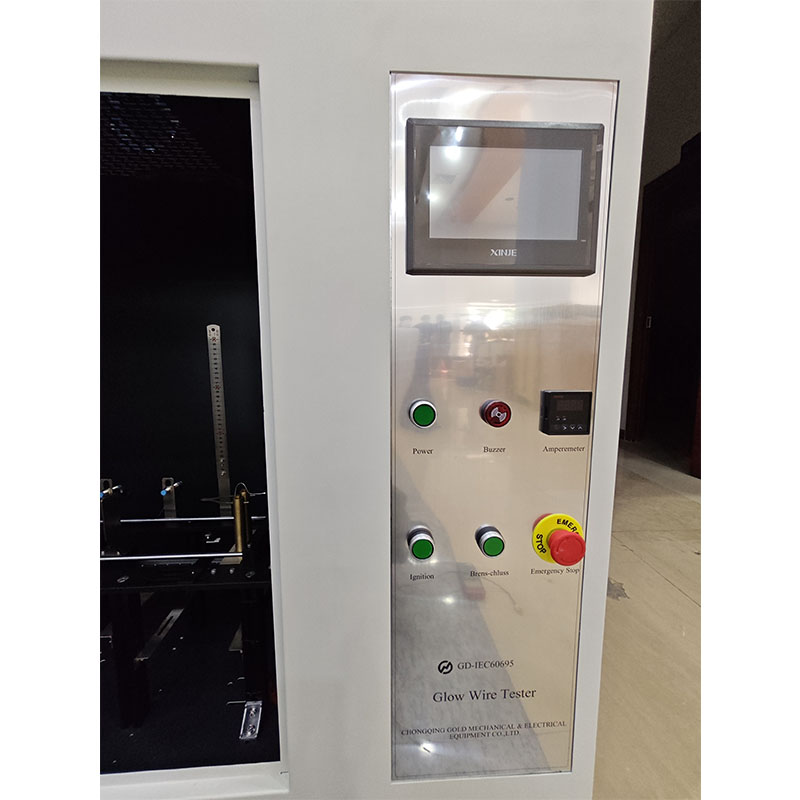

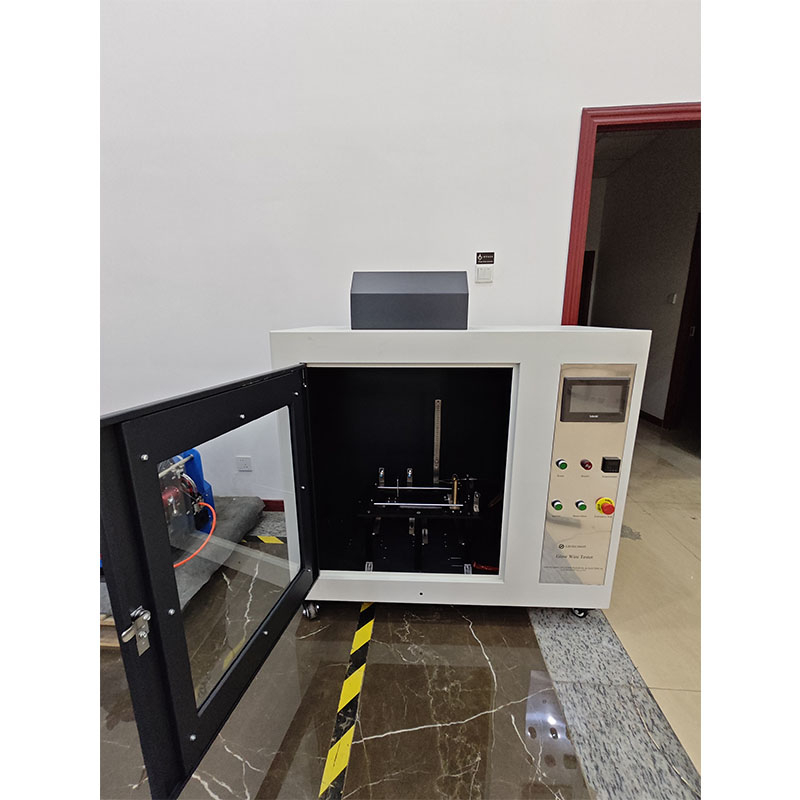

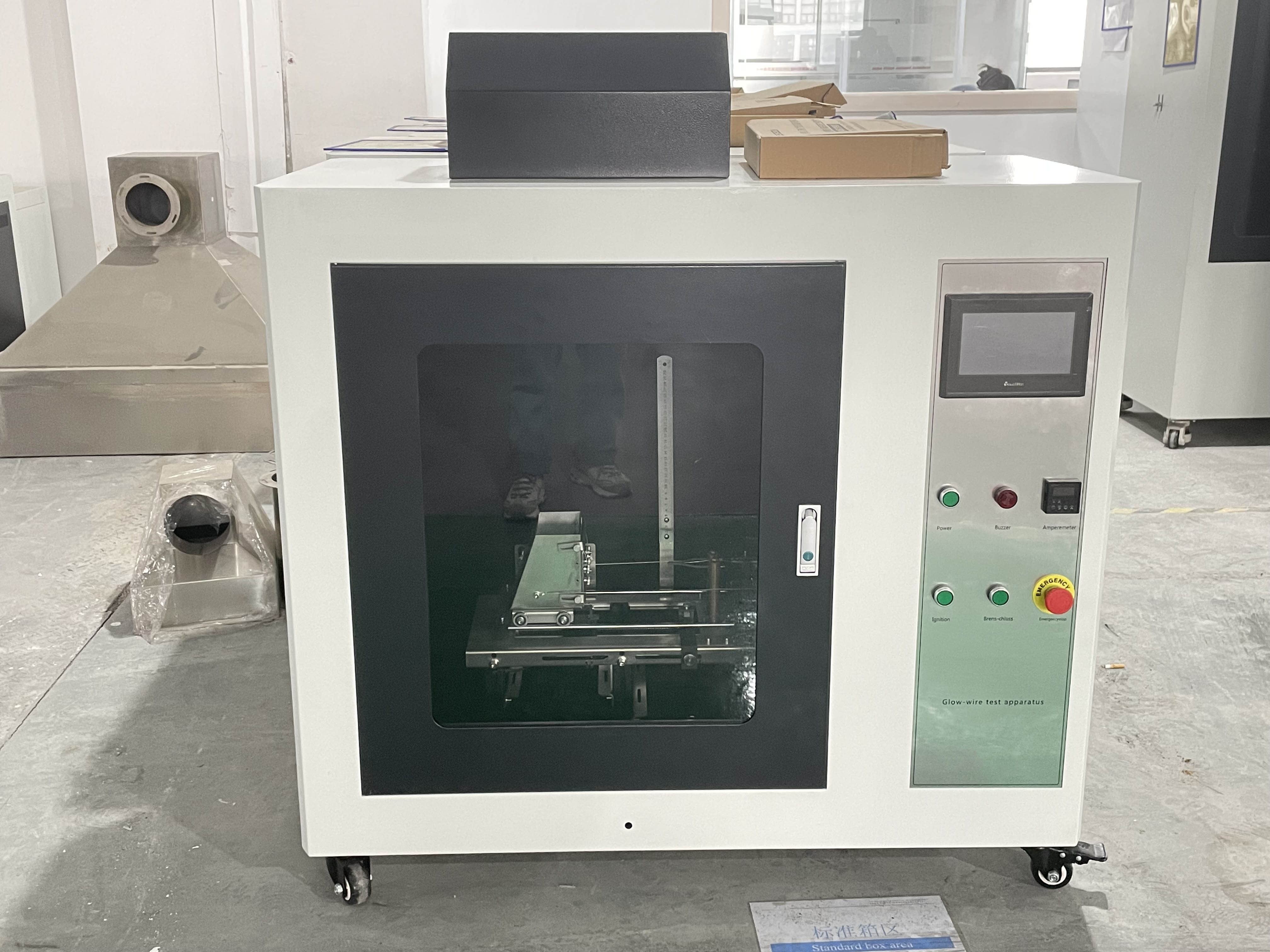

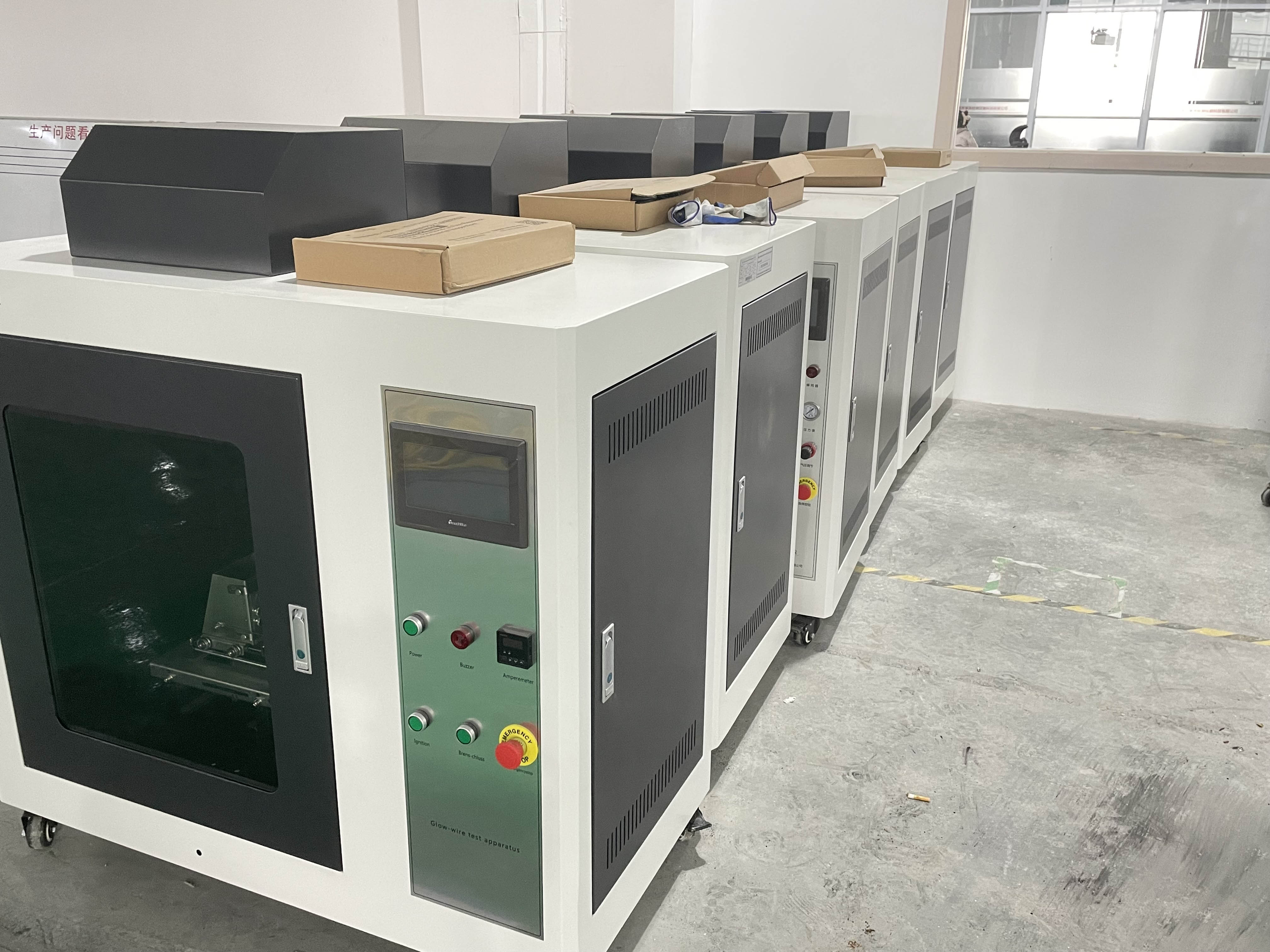

The glow wire tester adopts an integrated design of the test chamber and the control section, which is convenient for on-site installation and commissioning. The test chamber shell and important parts are made of stainless steel, which is resistant to smoke and gas corrosion; the thyristor automatic control system is used to automatically adjust the current to achieve the purpose of precise temperature control; the time and temperature are digitally displayed, which is convenient for observation and recording, and stable and reliable to use.
Standard :
1. GB5169
2. IEC60695-2-10
3. UL74A
4. DIN695
Specification:
| Product name | Glow Wire Tester For Plastics |
| Overall dimensions | W710xD365xH760 W1000 x D600 x H1260 |
| Power | AC220V + 10% / 50Hz |
| Weight | 30KG |
| Model | GD-IEC60695-2-10 |
Technical Parameters:

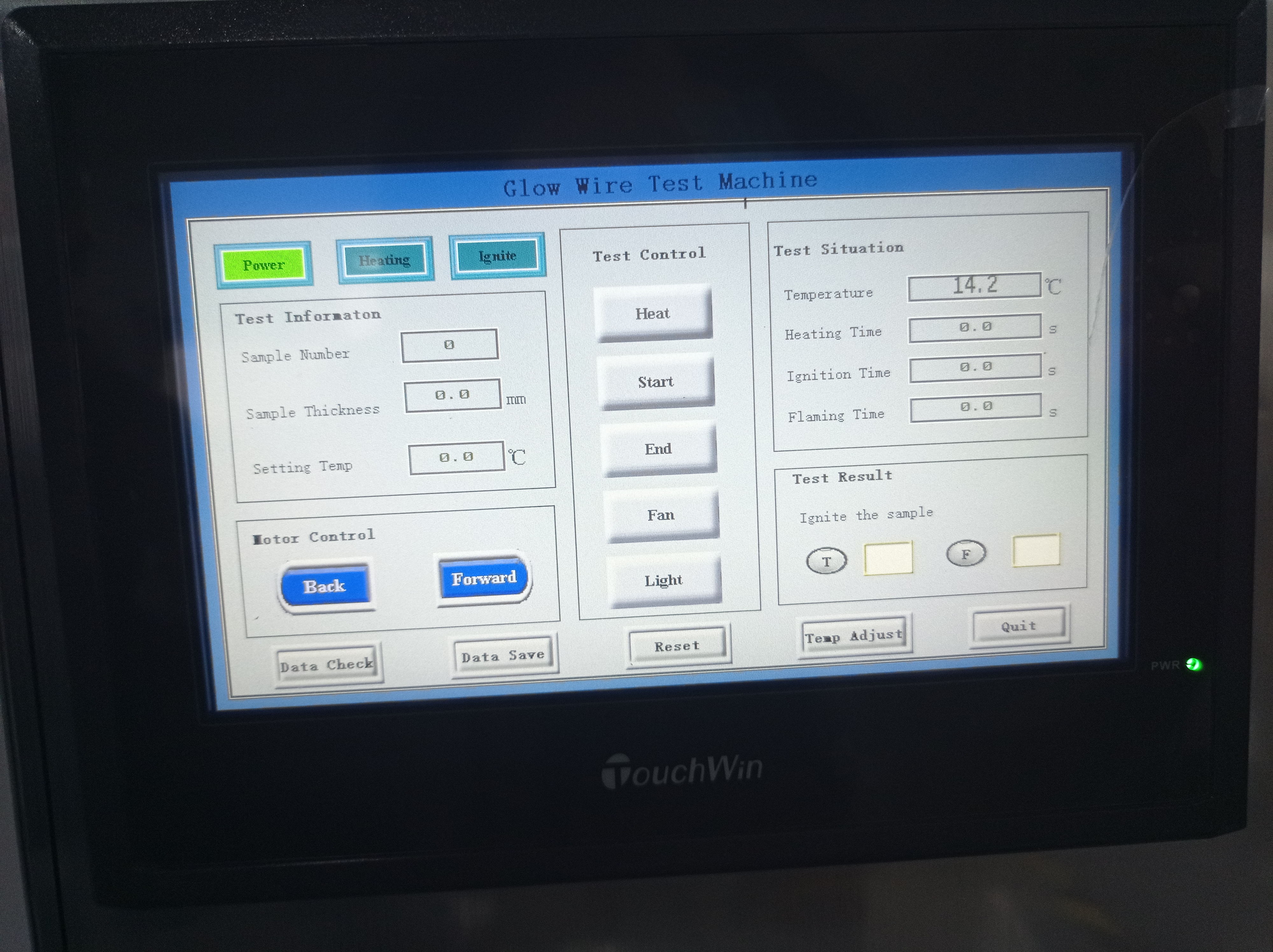

1. Temperature range: 500 ~ 1000 ºC, digital display adjustable.
2. Temperature error: ± 10 ºC (500 ~ 750 ºC); ± 15 ºC (750 ~ 1000 ºC), temperature measuring instruments Accuracy ± 0.5 magnitude.

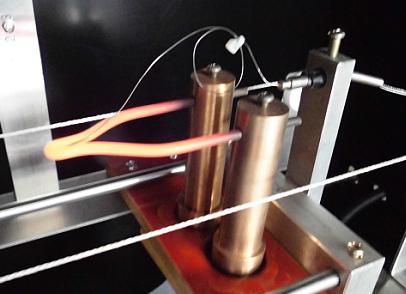

3. Temperature sensors: Φ0.5K type armored thermocouple, thermocouple imports.

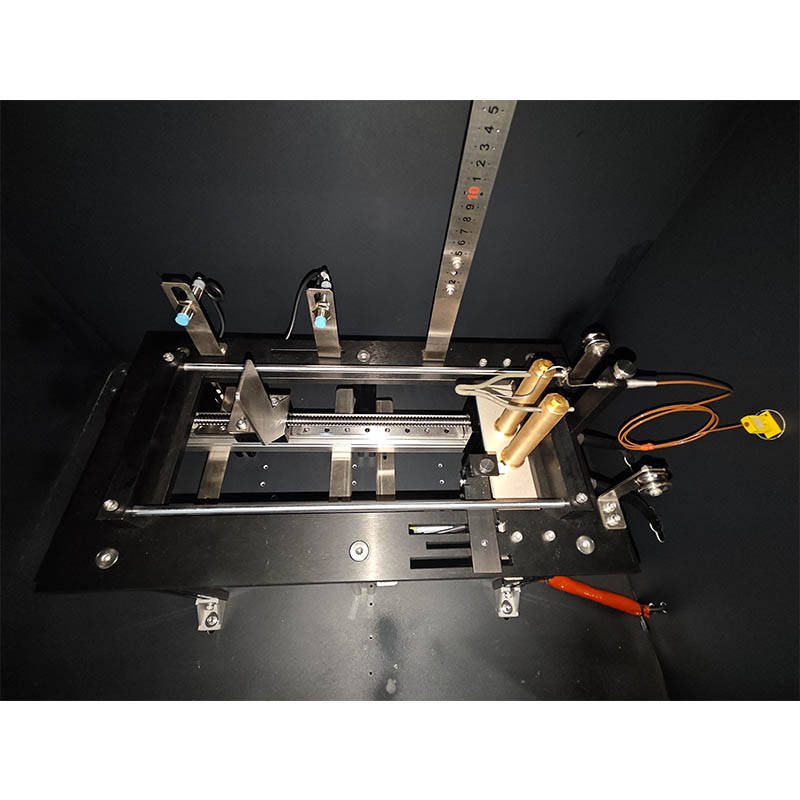

4. Pressure applied to the specimen: 0.8N ~ 1.2N, and limit the indentation depth of at least 7mm.
5. Timing range: 0 to 99 minutes 99 seconds adjustable.
6. And having Shi burning time (Ta, generally according to standards set to 30), second holding burning time (Ti) and the flame goes out time (Te) of the timer.
7. Time error: ± 1s.
8. Ignited bedding layer: 10mm thick white pine wood, covered 12g / m2 ~ 30g / m2 standard tissue paper, from under the glow wire 200mm ± 5mm.
9. Instrument operation is simple, stable and reliable temperature measurement system, and automatic temperature compensation.
10. Power supply: AC220V ± 10% / 50Hz. (Other power specifications can be customized.）
