GD-ISO11925
Gold

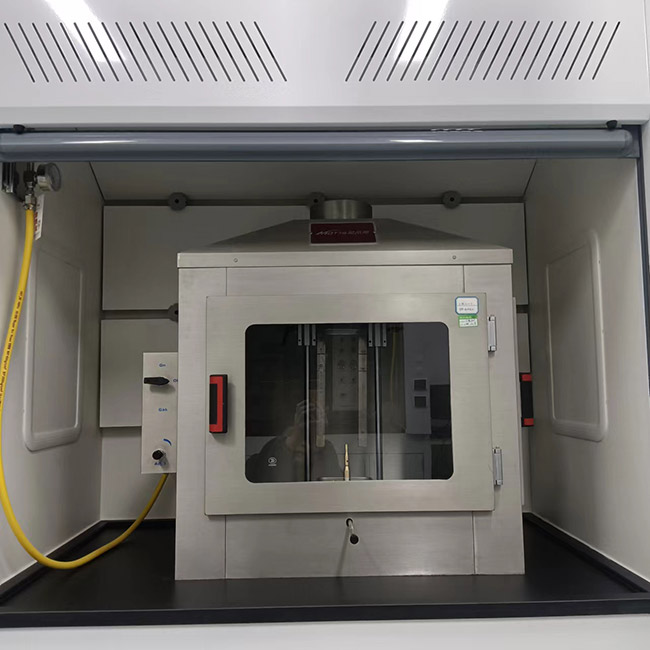

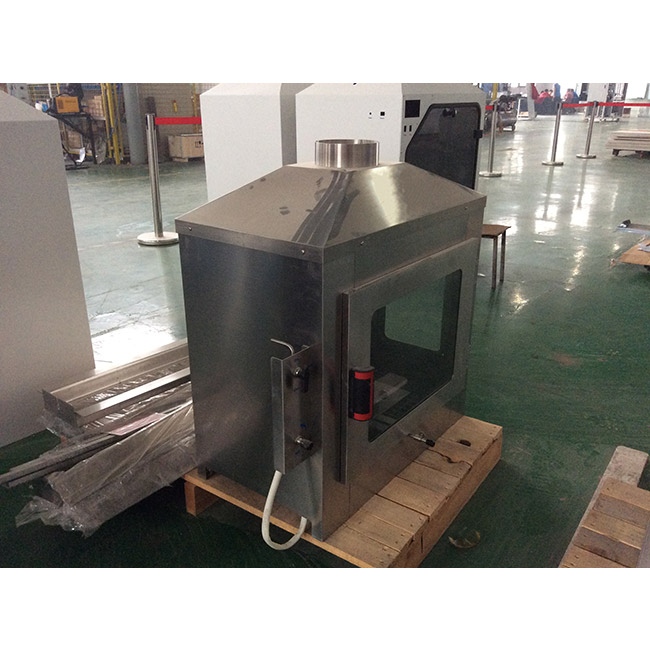

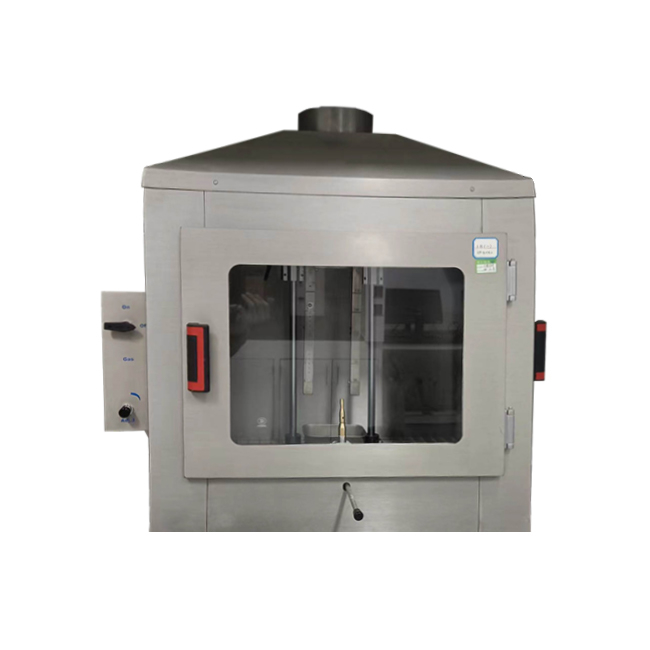

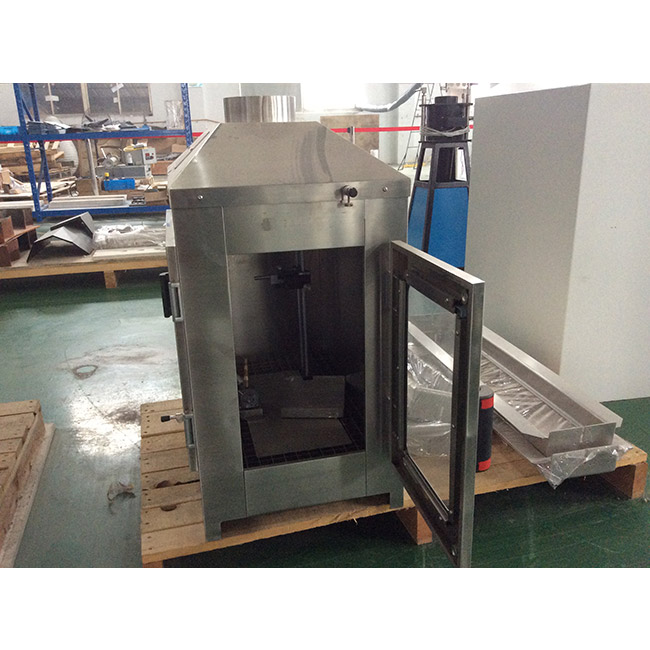

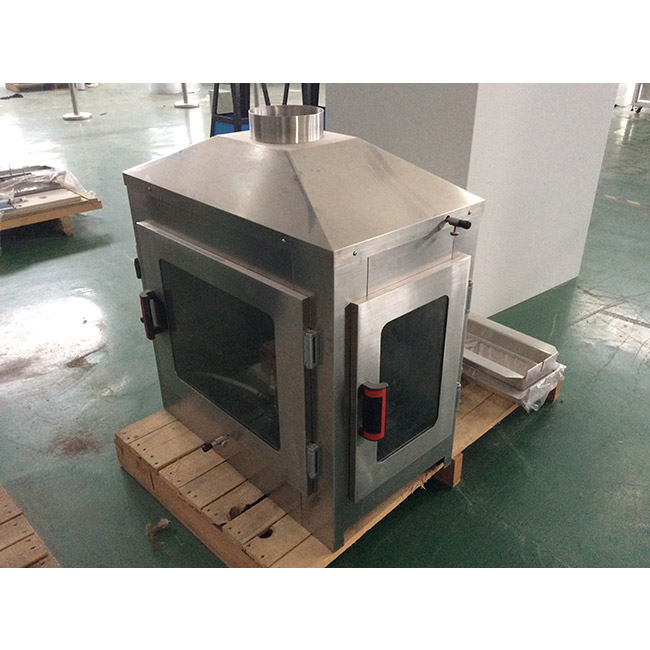

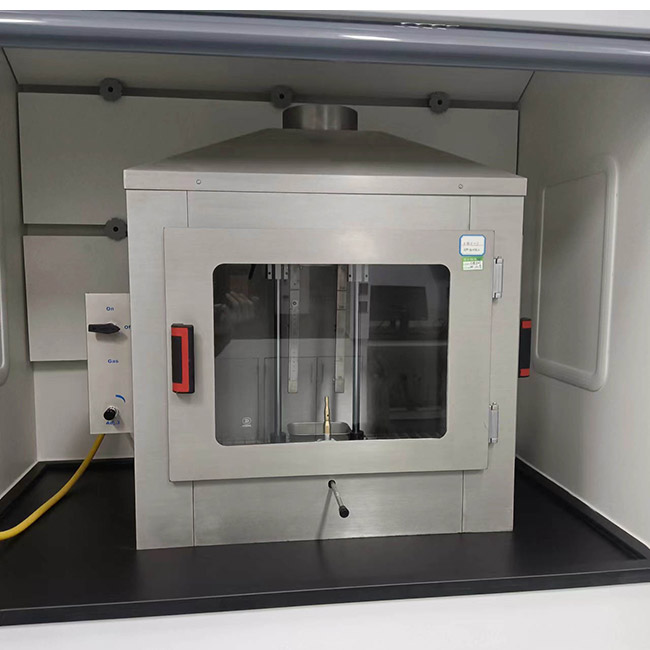

ISO 11925 Single Flame Source Tester
Product information
The ISO 11925 Flammability Tester is a specialized instrument designed to evaluate the ignitability of building materials under direct exposure to a small flame, adhering to international standards such as ISO 11925-2:2020 (Single-flame source test) . This tester is essential for assessing a wide range of construction and decorative products, including wall and ceiling panels, flooring (e.g., carpets, vinyl, and wood laminates), insulation materials (e.g., polystyrene foam, mineral wool), roofing membranes, composite boards, textiles, and cable sheaths. By simulating real-world fire scenarios, Single-Flame Source Test is widely used to assess the flammability performance class of construction or railway material, such as EN 13501-1, EN 45545-2, DIN 4102, DIN 5510-2, etc., making it a critical tool for manufacturers and testing labs focused on fire safety in building materials.
Standard
ISO 11925-2:2020 - Reaction to fire tests — Ignitability of products subjected to direct impingement of flame — Part 2: Single-flame source test
Test product scope
Wall and Ceiling Materials: Wallpaper, wallboard, fiberboard, composite wall panels, plastic wall lining, paint-coated wall coverings.
Floor Coverings: Carpet, vinyl flooring, rubber flooring, wood flooring laminate, composite flooring.
Insulation Materials: Foam plastic insulation boards (such as polystyrene foam), mineral wool insulation, fiberglass insulation, polyurethane foam.
Roofing and Exterior Materials: Roofing membranes, waterproofing membranes, metal composite panels, exterior wall insulation systems, asphalt roof shingles.
Textile and Fabric Products: Curtain fabrics, interior fabric coverings, decorative fabric panels.
Composite and Laminated Materials: Laminated panels (such as high-density fiberboard), honeycomb composite panels, aluminum-plastic composite panels.
Pipe and Cable Materials: Plastic pipe insulation, cable sheathing materials.
Other Building Components: Door and window seals, furniture foam filling (construction-related), decorative plastic panels.
Product Features
1. The chamber is constructed entirely of stainless steel, resisting corrosion and significantly extending the product's lifespan.
2. Two tempered glass doors, front and side, facilitate observation during testing.
3. Standard and wide stainless steel specimen clamps are available.
4. The ignition source can be positioned vertically or at a 45-degree angle, suitable for bottom and edge ignition.
5. The flame height is adjusted using a precision needle valve.
6. A flame height measurement device and a specimen distance gauge are provided.
7. The specimen holder can be mechanically moved up and down, as well as left and right.
ISO 11925 Single Flame Source Tester
Product information
The ISO 11925 Flammability Tester is a specialized instrument designed to evaluate the ignitability of building materials under direct exposure to a small flame, adhering to international standards such as ISO 11925-2:2020 (Single-flame source test) . This tester is essential for assessing a wide range of construction and decorative products, including wall and ceiling panels, flooring (e.g., carpets, vinyl, and wood laminates), insulation materials (e.g., polystyrene foam, mineral wool), roofing membranes, composite boards, textiles, and cable sheaths. By simulating real-world fire scenarios, Single-Flame Source Test is widely used to assess the flammability performance class of construction or railway material, such as EN 13501-1, EN 45545-2, DIN 4102, DIN 5510-2, etc., making it a critical tool for manufacturers and testing labs focused on fire safety in building materials.
Standard
ISO 11925-2:2020 - Reaction to fire tests — Ignitability of products subjected to direct impingement of flame — Part 2: Single-flame source test
Test product scope
Wall and Ceiling Materials: Wallpaper, wallboard, fiberboard, composite wall panels, plastic wall lining, paint-coated wall coverings.
Floor Coverings: Carpet, vinyl flooring, rubber flooring, wood flooring laminate, composite flooring.
Insulation Materials: Foam plastic insulation boards (such as polystyrene foam), mineral wool insulation, fiberglass insulation, polyurethane foam.
Roofing and Exterior Materials: Roofing membranes, waterproofing membranes, metal composite panels, exterior wall insulation systems, asphalt roof shingles.
Textile and Fabric Products: Curtain fabrics, interior fabric coverings, decorative fabric panels.
Composite and Laminated Materials: Laminated panels (such as high-density fiberboard), honeycomb composite panels, aluminum-plastic composite panels.
Pipe and Cable Materials: Plastic pipe insulation, cable sheathing materials.
Other Building Components: Door and window seals, furniture foam filling (construction-related), decorative plastic panels.
Product Features
1. The chamber is constructed entirely of stainless steel, resisting corrosion and significantly extending the product's lifespan.
2. Two tempered glass doors, front and side, facilitate observation during testing.
3. Standard and wide stainless steel specimen clamps are available.
4. The ignition source can be positioned vertically or at a 45-degree angle, suitable for bottom and edge ignition.
5. The flame height is adjusted using a precision needle valve.
6. A flame height measurement device and a specimen distance gauge are provided.
7. The specimen holder can be mechanically moved up and down, as well as left and right.
